Fuel Channel Inspection & Maintenance

Circumferential Wet Scrape Tool (CWEST*)

Considerable work has been done to predict the hydrogen concentration over the operating life of fuel channels, but sampling is still required to provide complete assurance. This is done by taking a “scrape” from the tube at specific locations during outages.

The high radiation fields and inaccessibility of the pressure tubes make sampling very difficult, and any tool used must be accurate, reliable, deployable, and fail-safe.

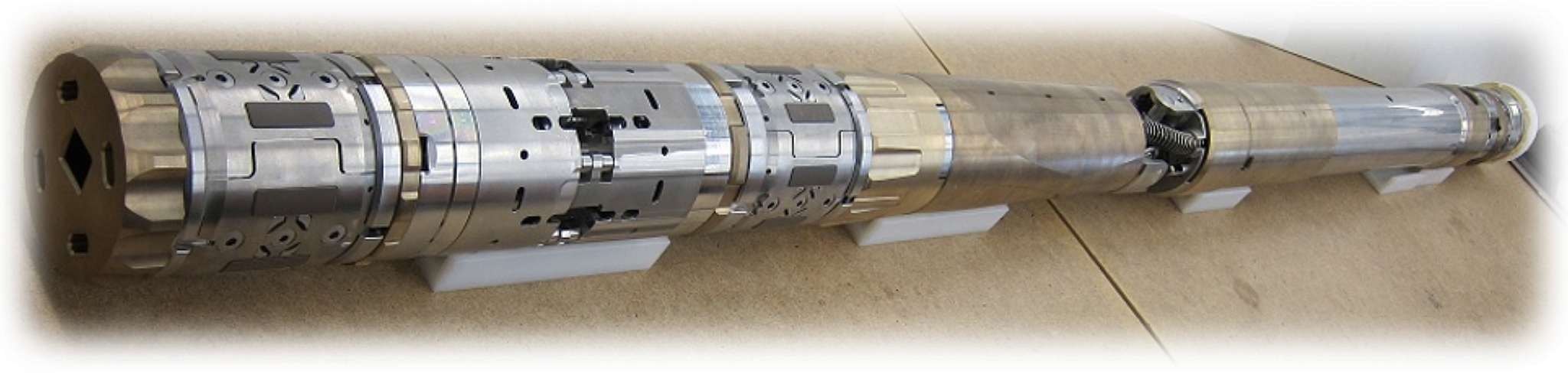

CWEST* employs a rotating cutting head driven by an electric motor. Hydraulic clamps center the tool in the pressure tube, while a hydraulic cutter actuator mechanism radially extends the cutters.

An oxide cut is performed at each scrape location to remove unrepresentative material. This is followed by the sample cut itself. During the cut process, light water is injected around the cutters to prevent deuterium contamination of the sample. Pressure tube samples are collected in an 8-compartment tray within the tool head. Upon completion of sampling the tool head is removed by the delivery machine and moved to a maintenance cart for sample retrieval. The tray is then recovered into a shielded flask for transportation.

Achievements

• CWEST* has a 7-year history in which it has performed more than 30 scrape campaigns across multiple CANDU units, translating to nearly 500 fuel channel visits and more than 3,500 scrape samples
• Single tool head builds have been used to complete 30+ channel scrape campaigns
• This tooling has been recognized for outage execution excellence by Ontario Power Generation and Bruce Power
• The tool has been used for first-of-a-kind extraordinary scrape scope (locations and channel visits) for Bruce Power Unit 3 to support its return to service in 2021 following the discovery of elevated hydrogen equivalent (Heq)

CWEST* Key Benefits

• Reduced Critical Path Time. Up to 8 scrape samples can be taken in a single fuel channel entry reducing time at the face, significantly shortening outage sampling duration, and reducing the critical path by 50% relative to legacy scrape tooling
• Safe. The process itself and the retrieval system benefit from a continuous shielded pathway that minimizes operator dose. Doses are reduced from 2 to 0.5 rem/channel relative to legacy approaches to sampling. Demonstrated scrape process that yields samples without undue risk to fuel channels

• Comprehensive Scraping Capability. The tool has been designed to access all areas of interest on the tube including near and far rolled joints as well as the body of the tube

• Re-deployable. The tool is easily retrievable and has been designed with decontamination and refurbishment in mind allowing it to be used in multiple campaigns

• Flexible Deployment. CWEST* is compatible with many tool delivery machines including the Bruce Reactor Inspection and Maintenance Systems (BRIMS), the Universal Deployment Machine (UDM), and Rapid Delivery Machine (RDM)

• Fully Supported with a Comprehensive Service Offering. The tool is easily decontaminated and refurbished and we have developed facilities to support these activities ensuring timely and cost-effective maintenance. You can even ask us to carry out the campaigns on your behalf

• Avoids Ice Plugs. Operates in a wet channel environment and therefore eliminates the use of ice plugs and the associated nuclear safety risk

• Deuterium Uptake Avoided. Light water is injected to prevent deuterium uptake by the scrape sample

*CWEST not available for sale outside of Canada until after November 30, 2027.

Fret Replica Inspection Laser Scanner (FRILS)

Detailed knowledge of the flaw geometry is crucial when conducting the stress analysis of flaws found in the thin-walled zirconium alloy pressure tubes of CANDU reactors.

While ultrasonic fret replica inspection provides much of the required data, measurement of the sharpness or root radius at the bottom of the flaw requires a replica of the flaw to be taken and subsequently measured.

Our fret replica inspection laser scanner will provide an accurate profile of the flaw replica immediately after its removal from the reactor. This facilitates rapid analysis and enables timely engineering decisions during critical outage situations.

It has a depth resolution of < 1 micrometer and a traceable depth accuracy to better than 50 micrometers. It is also capable of measuring root radius of < 40 micrometers.

Features:

• Narrow (20 micrometers) laser stripe, CCD camera with zoom optics
• Portable hardware
• Portable data files, may be analyzed on most typical desktop computers
• Measurement on rubber replicas – no hard cast required
• Several hundred surface profiles per fret if desired (up to 3000 profiles per scan)
• The width of each surface profile is 1 to 5 mm, and a scan is up to 50 mm long
• Color graphics highlight the deepest/sharpest locations in the fret
• Automatic reporting of fret location, depth, width, length, and volume
